YS-GHF280塑封多功能包裝機
YS-GHF280 Multi-function plastic-envelop machine
YS-GHF280 塑封多功能顆粒包裝機
特點：
１、適用于干果、零食、烘焙食品中糖果、麥麗素、巧克力、尖角脆等顆粒物品的計量包裝。
Suitable for the metering and packaging of granular items in dried fruits, snacks, and baked goods, such as candies, malted milk balls, chocolates, and crispy horns.

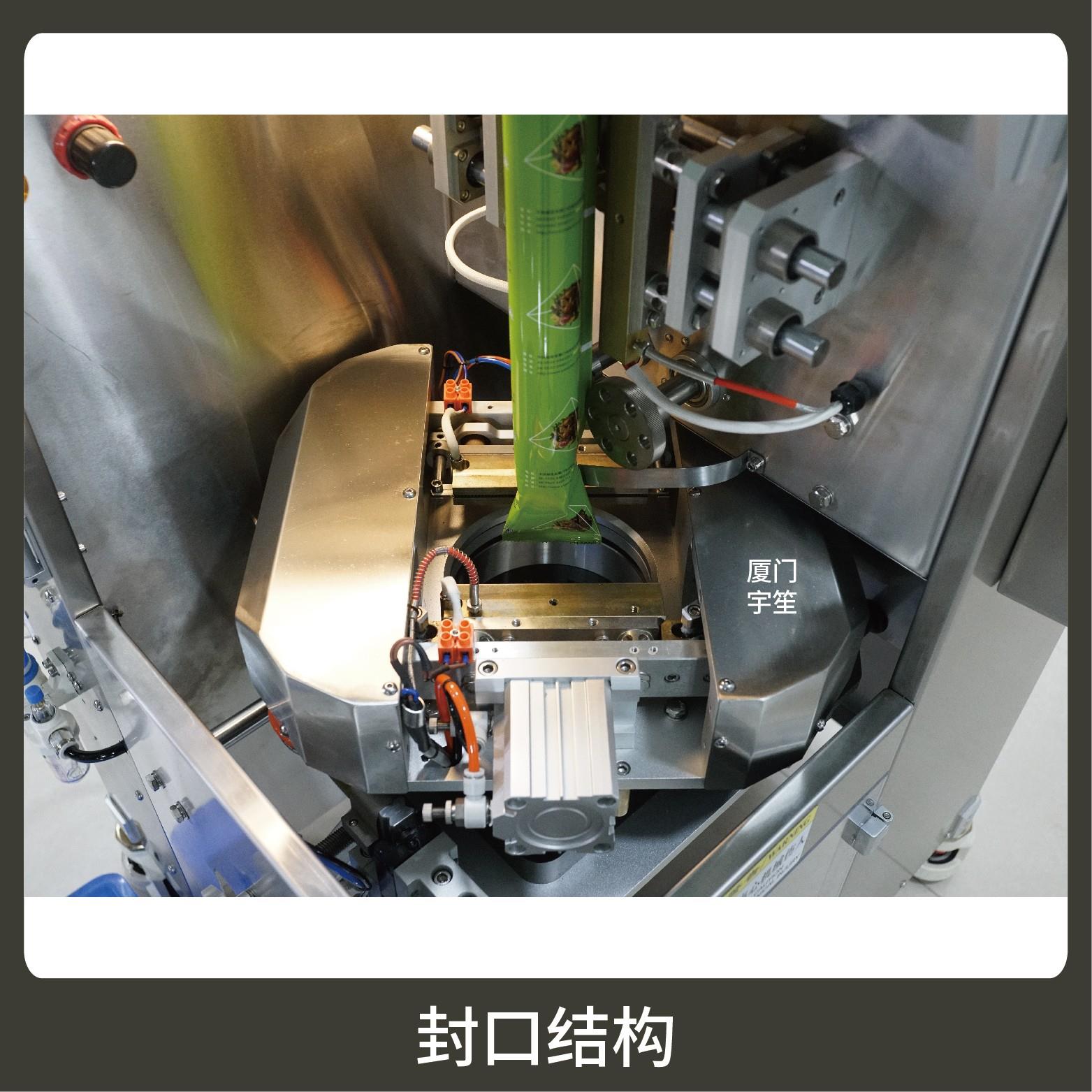

２、一機多用，一鍵切換封口形式（三邊封、背封、三角袋），可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
This machine has multiple purposes, one key switch sealing form (three side sealing, back sealing, triangle bag),all the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以?xún)取?span lang="EN-US">
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：復合膜。
Packaging materials：composite film.
技術參數：
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸Bag size:長( L ) : 80 - 140 mm
三邊封膜寬：120-230mm
Three-side sealing film width
背封膜寬：120-280mm
Back sealing film width
三角袋最大膜寬：160mm
Triangle bag maximum film width
包裝速度：20 - 60 bags / min
Packing Speed
外型尺寸：810 * 630 * 1550 mm
Dimension ( L * W * H )
整機重量：220 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.5kw
Total Power
氣 源：≥0.6Mpa
Gas source
保修期：一年質保，終生維護
二十幾年的包裝經驗，袋形美觀，性能穩定，速度快，價格優惠
１、適用于干果、零食、烘焙食品中糖果、麥麗素、巧克力、尖角脆等顆粒物品的計量包裝。
Suitable for the metering and packaging of granular items in dried fruits, snacks, and baked goods, such as candies, malted milk balls, chocolates, and crispy horns.
２、一機多用，一鍵切換封口形式（三邊封、背封、三角袋），可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
This machine has multiple purposes, one key switch sealing form (three side sealing, back sealing, triangle bag),all the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以?xún)取?span lang="EN-US">
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：復合膜。
Packaging materials：composite film.
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸Bag size:長( L ) : 80 - 140 mm
三邊封膜寬：120-230mm
Three-side sealing film width
背封膜寬：120-280mm
Back sealing film width
三角袋最大膜寬：160mm
Triangle bag maximum film width
包裝速度：20 - 60 bags / min
Packing Speed
外型尺寸：810 * 630 * 1550 mm
Dimension ( L * W * H )
整機重量：220 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.5kw
Total Power
氣 源：≥0.6Mpa
Gas source
１、適用于干果、零食、烘焙食品中糖果、麥麗素、巧克力、尖角脆等顆粒物品的計量包裝。
Suitable for the metering and packaging of granular items in dried fruits, snacks, and baked goods, such as candies, malted milk balls, chocolates, and crispy horns.
